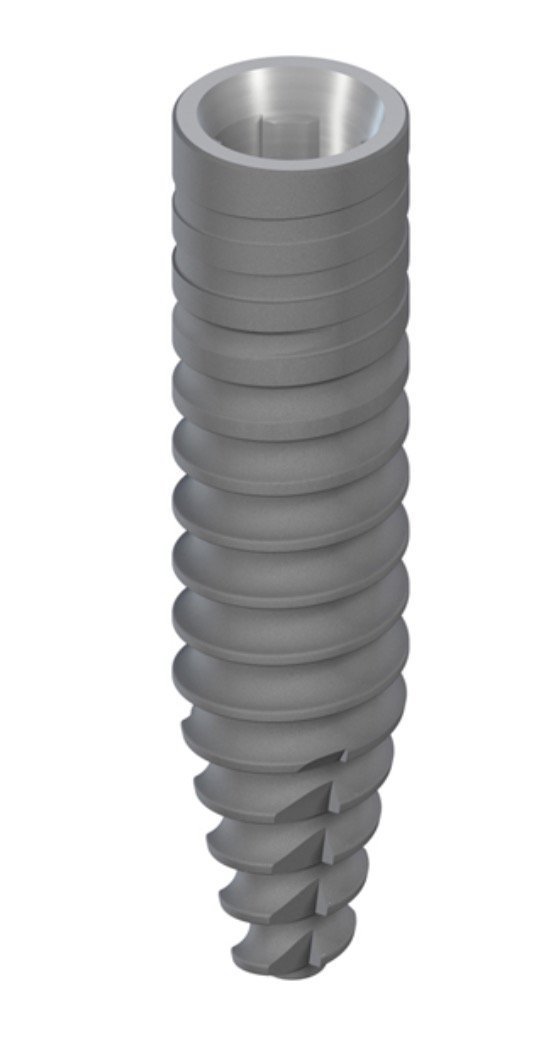

Bone Level Taper By Straumann®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: No Anti-rotational
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: Reverse Buttress
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Internal with morse taper

Screwdriver

Dimensions

Length \ Diameter	2.90mm	3.30mm	4.10mm	4.80mm
8.00mm		021.3308G 021-3308(P:3.30mm)	21.5508(P:4.10mm) 021-5308(P:4.10mm) 21.5308(P:4.10mm) 021.5308G	21.7508(P:4.80mm) 21.7308(P:4.80mm) 021-7308(P:4.80mm) 021.7308G
10.00mm	21.0010	021.3310G 021-3310(P:3.30mm)	021-5310(P:4.10mm) 21.551(P:4.10mm) 021.5310G 21.531(P:4.10mm)	021-7310(P:4.80mm) 021.7310G 21.731(P:4.80mm) 21.751(P:4.80mm)
12.00mm	21.0012	021.3312G 021-3312(P:3.30mm)	021-5312(P:4.10mm) 21.5312(P:4.10mm) 21.5512(P:4.10mm) 021.5312G	21.7312(P:4.80mm) 021.7312G 021-7312(P:4.80mm) 21.7512(P:4.80mm)
14.00mm	21.0014	021-3314(P:3.30mm)	021-5314(P:4.10mm) 21.5514(P:4.10mm) 21.5314(P:4.10mm)	21.7514(P:4.80mm) 021-7314(P:4.80mm) 21.7314(P:4.80mm)
16.00mm			21.5516(P:4.10mm) 21.5316(P:4.10mm)	21.7316(P:4.80mm) 21.7516(P:4.80mm)
18.00mm			21.5518(P:4.10mm) 21.5318(P:4.10mm)	21.7518(P:4.80mm) 21.7318(P:4.80mm)

Compatible Components

Components compatible with Straumann® Bone Level Taper®

Browse compatible components

Description

Bone Level Taper is a standard dental implant produced by Straumann. Its connection is internal, with a no anti-rotational shape with morse taper. It's a bone level implant. Its head is straight. Its body is tapered with reverse buttress threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 6 different lengths. This implant model is fairly recent. It requires a screwdriver of six-point star shape. For more details, please refer to the catalog. Straumann also offers 27 other implant models.

Components compatible with Straumann® Bone Level Taper®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
