Internal IFI By DIO Implant®

Technical Features

Level: Tissue Level
Connection Type: Internal
Connection Shape: Six lobe
Head Shape: Flared
Head Microthreads: No
Body Shape: Tapered
Body Threads: Reverse Buttress
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Screwdrivers

Platforms

4.8mm
6.5mm

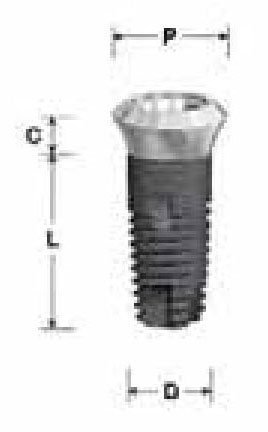

Dimensions

Length \ Diameter	3.50mm	4.10mm	4.80mm	5.50mm
8.00mm	IFI 3508PM	IFI 4008PM	IFI 4808 PM	IFI 5508 PM
10.00mm	IFI 3510PM	IFI 4010PM	IFI 4810 PM	IFI 5510 PM
12.00mm	IFI 3512PM	IFI 4012PM	IFI 4812 PM	IFI 5512 PM
14.00mm	IFI 3514PM	IFI 4014PM	IFI 4814 PM	IFI 5514 PM

Compatible Components

Components compatible with DIO Implant® Internal IFI®

Browse compatible components

Description

Internal IFI is a standard dental implant produced by DIO Implant. It's a tissue level implant. Its connection is internal, with a six lobe shape with morse taper. Its head is flared. Its body is tapered with reverse buttress threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 4 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. DIO Implant also offers 15 other implant models.

Components compatible with DIO Implant® Internal IFI®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
