External FSN By DIO Implant®
Technical Features
Identify a dental implant
Learn moreConnection
External
Hexagon
Screwdrivers
Platforms
- narrow 3.5mm
- regular 4.1mm
- wide 5.1mm

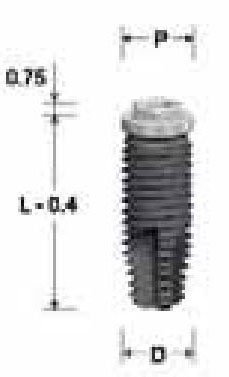

Dimensions
| Length \ Diameter | 3.30mm | 3.75mm | 4.00mm | 5.00mm | 5.50mm | 6.00mm |
|---|---|---|---|---|---|---|
| 7.00mm | FSN 3307B | FSN 3707B | FSN 4007B | FSN 5007B | ||
| 8.50mm | FSN 3308B | FSN 3708B | FSN 4008B | FSN 5008B | FSN 5508B | FSN 6008B |
| 10.00mm | FSN 3310B | FSN 3710B | FSN 4010B | FSN 5010B | FSN 5510B | FSN 6010B |
| 11.50mm | FSN 3311B | FSN 3711B | FSN 4011B | FSN 5011B | FSN 5511B | FSN 6011B |
| 13.00mm | FSN 3313 | FSN 3713B | FSN 4013 | FSN 5013B | FSN 5513B | FSN 6013B |
| 15.00mm | FSN 3315 | FSN 3715B | FSN 4015B | FSN 5015B | FSN 5515B | FSN 6015B |
Compatible Components
Components compatible with DIO Implant® External FSN®
Description
External FSN is a standard dental implant produced by DIO Implant. It's a bone level implant. Its connection is external, with a hexagon shape with none. Its head is wide. Its body is straight with v shaped threads. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 6 different diameters and 6 different lengths.It is available in 3 different platforms. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. DIO Implant also offers 15 other implant models.
Components compatible with DIO Implant® External FSN®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
