Internal PSI By DIO Implant®

Technical Features

Level: Tissue Level
Connection Type: Internal
Connection Shape: Six lobe
Head Shape: Flared
Head Microthreads: No
Body Shape: Straight
Body Threads: Reverse Buttress
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Screwdrivers

Platforms

4.8mm
6.5mm

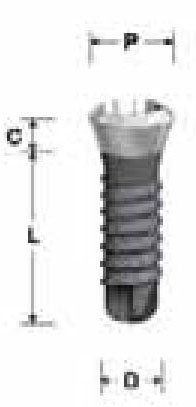

Dimensions

Length \ Diameter	3.50mm	4.10mm	4.80mm
8.00mm	PSI 3508P	PSI 4008P	PS1 4808P
10.00mm	PSI 3510P	PSI 4010P	PS1 4810P
12.00mm	PSI 3512P	PSI 4012P	PS1 4812P
14.00mm	PSI 3514P	PSI 4014P	PS1 4814P

Compatible Components

Components compatible with DIO Implant® Internal PSI®

Browse compatible components

Description

Internal PSI is a standard dental implant produced by DIO Implant. It's a tissue level implant. Its connection is internal, with a six lobe shape with morse taper. Its body is straight with reverse buttress threads. Its head is flared. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 3 different diameters and 4 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. DIO Implant also offers 15 other implant models.

Components compatible with DIO Implant® Internal PSI®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
