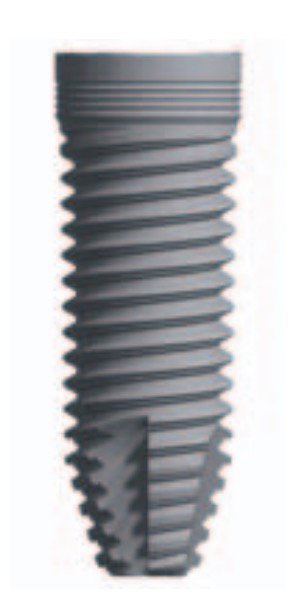

NobelSpeedy Replace By Nobel Biocare®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Tri lobe
Head Shape: Wide
Head Microthreads: Yes
Body Shape: Straight
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Internal Tri lobe

Screwdriver

Platforms

3.5mm
4.3mm
5mm
6mm

Platform specifications and compatibilities

Dimensions

Length \ Diameter	3.50mm	4.00mm	5.00mm	6.00mm
10.00mm	32196	32200	32205	32191
11.50mm	32197	32201	32206	32192
13.00mm	32198	32202	32207	32193
15.00mm	32199	32203	32208	32194
18.00mm		32204	32209	32195

Compatible Components

Components compatible with Nobel Biocare® NobelSpeedy Replace®

Browse compatible components

Description

NobelSpeedy Replace is a standard dental implant produced by Nobel Biocare. It's a bone level implant. Its connection is internal, with a tri lobe shape with none. Its head is wide and has microthreads. Its body is straight with v shaped threads. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 5 different lengths.It is available in 4 different platforms. It requires a screwdriver of six-point star shape. For more details, please refer to the catalog. Nobel Biocare also offers 32 other implant models.

Components compatible with Nobel Biocare® NobelSpeedy Replace®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
