Branemark System MK IV By Nobel Biocare®
Technical Features
- Material: CP Titanium
- Level: Bone Level
- Connection Type: External
- Connection Shape: Hexagon
- Head Shape: Flared
- Head Microthreads: No
- Body Shape: Tapered Apex
- Body Threads: V Shaped
- Apex Shape: Flat
- Apex Hole: No Hole
- Apex Grooves: Yes
Identify a dental implant
Learn moreConnection
External
Hexagon
Screwdrivers
Platforms
- regular 4.1mm
- wide 5.1mm
Dimensions
| Length \ Diameter | 4.00mm | 5.00mm |
|---|---|---|
| 7.00mm | 28932 | 28939 |
| 8.50mm | 28933 | 28941 |
| 10.00mm | 28934 | 28940 |
| 11.50mm | 28935 | 28942 |
| 13.00mm | 28936 | 28943 |
| 15.00mm | 28937 |
28944
58944 |
| 18.00mm | 28938 |
Compatible Components
Components compatible with Nobel Biocare® Branemark System MK IV®
Description

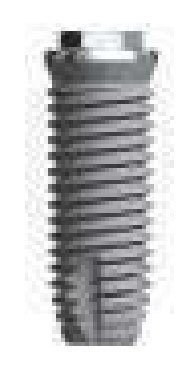

Branemark System MK IV is a standard dental implant produced by Nobel Biocare. It's a bone level implant. Its connection is external, with a hexagon shape with none. Its head is flared. Its body is tapered apex with v shaped threads. Its apex has a flat shape, doesn't have a hole, and has grooves. It is made of cp titanium. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Nobel Biocare also offers 32 other implant models.
Components compatible with Nobel Biocare® Branemark System MK IV®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
