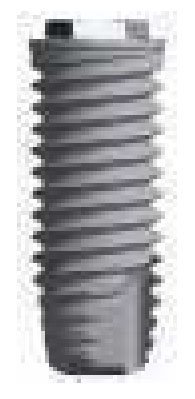

Branemark System MK III Groovy By Nobel Biocare®
Technical Features
- Material: CP Titanium
- Level: Bone Level
- Connection Type: External
- Connection Shape: Hexagon
- Head Shape: Flared
- Head Microthreads: No
- Body Shape: Tapered Apex
- Body Threads: V Shaped
- Apex Shape: Flat
- Apex Hole: No Hole
- Apex Grooves: Yes
Identify a dental implant
Learn moreConnection
External
Hexagon
Screwdrivers
Platforms
- narrow 3.5mm
- regular 4.1mm
- wide 5.1mm
Dimensions
| Length \ Diameter | 3.30mm | 3.75mm | 4.00mm | 5.00mm |
|---|---|---|---|---|
| 7.00mm | 32118(P:3.75mm) | 32125(P:4.00mm) | 32132(P:4.00mm) | |
| 8.50mm | 32119(P:3.75mm) | 32126(P:4.00mm) | 32133(P:5.00mm) | |
| 10.00mm | 32114(P:3.30mm) | 32120(P:3.75mm) | 32127(P:4.00mm) | 32134(P:5.00mm) |
| 11.50mm | 32115(P:3.30mm) | 32121(P:3.75mm) | 32128(P:4.00mm) | 32135(P:5.00mm) |
| 13.00mm | 32116(P:3.30mm) | 32122(P:3.75mm) | 32129(P:4.00mm) | 32136(P:5.00mm) |
| 15.00mm | 32117(P:3.30mm) | 32123(P:3.75mm) | 32130(P:4.00mm) | 32137(P:5.00mm) |
| 18.00mm | 32124(P:3.75mm) | 32131(P:4.00mm) | 32138(P:5.00mm) |
Compatible Components
Components compatible with Nobel Biocare® Branemark System MK III Groovy®
Description
Branemark System MK III Groovy is a standard dental implant produced by Nobel Biocare. It's a bone level implant. Its connection is external, with a hexagon shape with none. Its body is tapered apex with v shaped threads. Its head is flared. Its apex has a flat shape, doesn't have a hole, and has grooves. It is made of cp titanium. It is available in 4 different diameters and 7 different lengths.It is available in 3 different platforms. This implant model is quite old. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Nobel Biocare also offers 32 other implant models.
Components compatible with Nobel Biocare® Branemark System MK III Groovy®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
